Bose L1 Pro 8 x2 Speakers Home Luxury 704

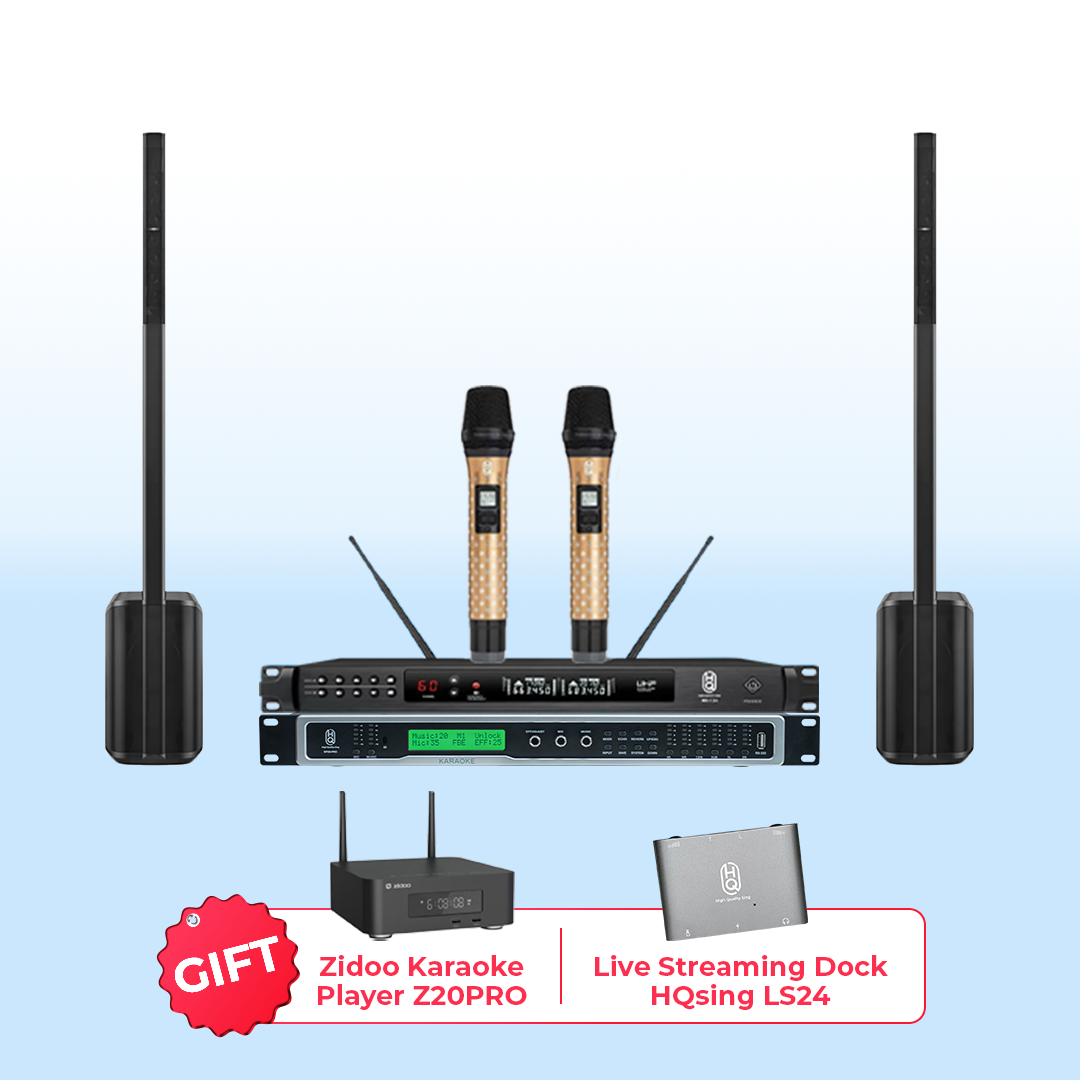

1. SYSTEM CONFIGURATION

• Main Speakers: 2 x Bose L1 Pro8 (Active Line Array Speakers)
• Processor: HQsing DP26-PRO (Digital Audio Processor)
• Microphones: HQsing MR-124 (Premium UHF Wireless Microphones)
• Gift: Zidoo Z20 Pro (Smart Karaoke / Media Player)

2. MAIN SPEAKERS – Bose L1 Pro8

Technical Specifications

• Type: Active portable line array speaker
• Driver configuration: 8-driver C-shaped array
• Horizontal coverage: 180°
• Max SPL: 118 dB Peak
• Built-in bass module: Integrated RaceTrack subwoofer
• Dimensions: 2000 × 317 × 456 mm
• Weight: 17.4 kg / speaker

Construction

• Slim and modern column design
• Active speaker system with integrated bass section
• Easy setup for premium home karaoke spaces
• Wide and even sound coverage

Connectivity

• Bluetooth streaming
• Built-in mixer section
• Suitable for use with external processors such as DP26-PRO

3. PROCESSOR – HQsing DP26-PRO

Main Specifications

• Device type: Digital Audio Effect Processor
• DSP chip: ADI 64-bit
• Frequency Response: 20Hz – 20kHz (±1dB)
• S/N Ratio: ≥ 90 dB
• THD+N: < 0.05%

Integrated Processing

• 15-band PEQ for Music
• 15-band PEQ for Mic
• 5-band Echo / Reverb
• Independent Delay / Limiter on each output
• Bluetooth 5.0 Lossless
• 9 preset memories

Connectivity

• Input: RCA / Optical / Bluetooth / Coaxial
• Output: Main L/R / Center / Surround L/R / Subwoofer

👉
Important: DP26-PRO is a dedicated signal processor, making it a very suitable
match for active speaker systems like the Bose L1 Pro8.

4. MICROPHONES – HQsing MR-124

Technical Specifications

• Wireless type: UHF 900 MHz
• Channels: 200 auto-select channels
• Frequency Response: 40Hz – 18kHz
• S/N Ratio: > 110 dB
• High sensitivity pickup with stable vocal performance

Design

• Premium metal body
• Triple-layer grille
• Built-in Noise Reduction
• Auto Gain
• Auto-Off Mode for battery saving

5. GIFT – Zidoo Z20 Pro

Technical Specifications

• Type: Media player / smart karaoke player
• Operating System: Android 11
• CPU: Realtek RTD1619BPD ARM Cortex-A55 quad-core
• GPU: ARM Mali-G57
• RAM: 4GB DDR4
• Internal Storage: 32GB eMMC
• Bluetooth: 5.2
• Wi-Fi: 2.4G + 5G dual-band, Wi-Fi 6
• LAN: Gigabit Ethernet 10/100/1000Mbps
• HDMI Output: HDMI 2.1, supports up to 4K@60p
• HDR support: HDR10 / HLG / HDR10+ / Dolby Vision
• Color support: 12-bit, BT.2020, YCbCr 4:4:4
• Audio pass-through: Supported
• HDD bay: Supports 3.5” / 2.5” SATA hard drives up to 16TB
• Chassis: Aluminum alloy
• Front display: LED

Key Features

• Supports online and offline karaoke playback
• Sharp 4K video performance
• Easy TV connection via HDMI
• Large internal storage expansion with SATA HDD support
• Suitable as a premium family entertainment karaoke player
