HQsing S208 Plus 4000X - SUB SW12

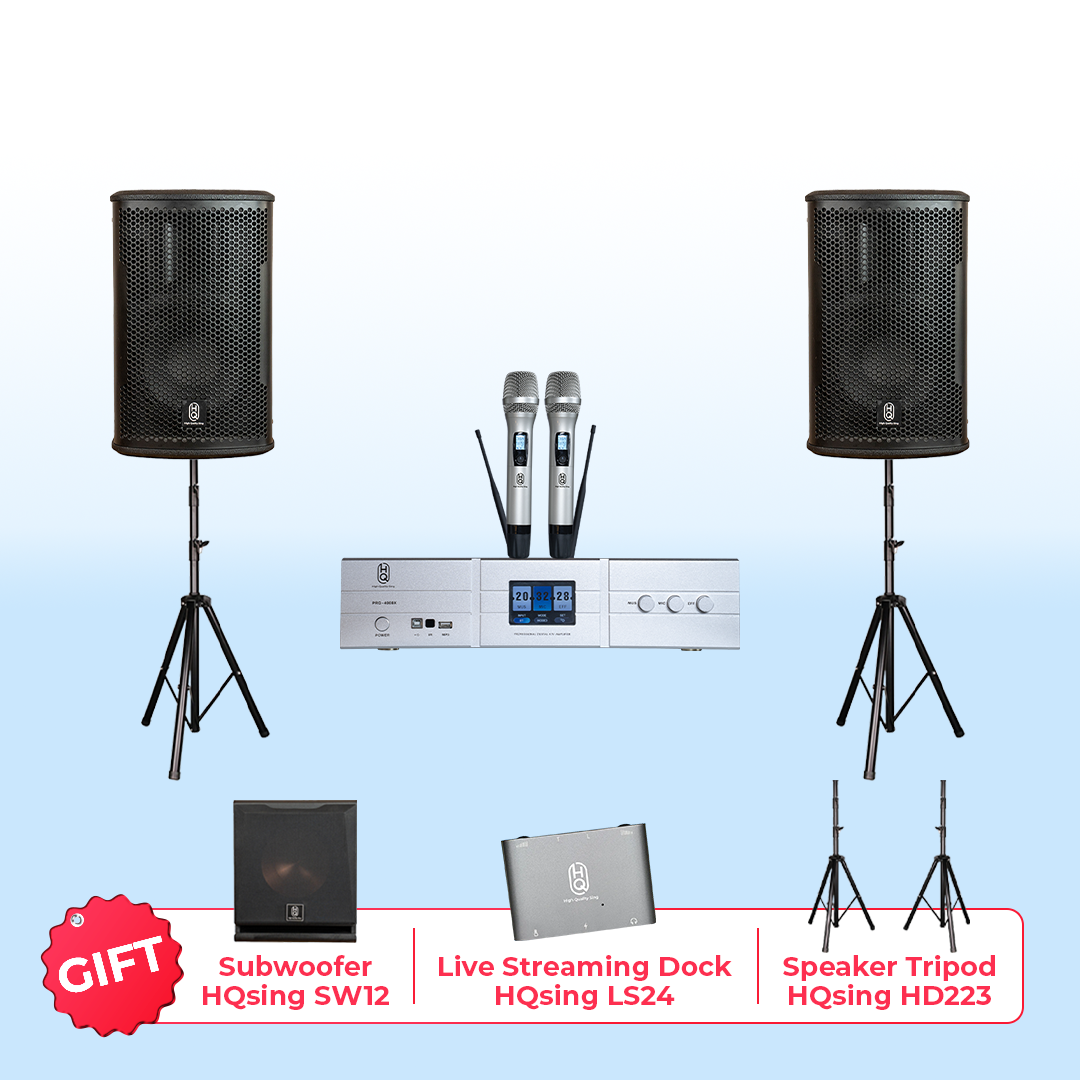

HQsing Speaker Home Premium 4000

HQsing S208 + PRO4000X + SW12
1. SYSTEM CONFIGURATION
Main Speakers: HQsing S208 (Passive Full Range 8”)
Amplifier: HQsing PRO4000X (3-in-1: DSP + Microphones + Power Amp)
Subwoofer: HQsing SW12 (Active Subwoofer – Class D)
________________________________________
2. MAIN SPEAKERS – HQsing S208
Technical Specifications
Type: Passive full range 8 inch
Power: 280W RMS / 1120W Peak
Impedance: 8Ω
Sensitivity: 93 dB
Max SPL: 123 dB
Frequency Response: 63Hz – 18kHz
Construction
Cabinet: Birch Plywood (not MDF)
Finish: Tour-grade anti-scratch coating
Grille: Heavy-duty metal grille
Weight: ~13 kg
Connectivity
Speakon INPUT
Speakon LINK
________________________________________
3. AMPLIFIER – PRO4000X
Key Specifications
Power Output: 400W RMS per channel (800W total)
Frequency Response: 20Hz – 20kHz
SNR: >90 dB
THD: <0.05%
Built-in System
Mixer + DSP + Power Amplifier
2 UHF wireless microphones
Connectivity
Input: HDMI / Optical / Bluetooth / RCA
Output:
Speaker Out (for passive speakers)
4 XLR Balanced Outputs (for subwoofer / active speakers / multi-zone)
👉 Important: PRO4000X provides XLR outputs → propersubwoofer connection (DO NOT use speaker output for sub)
________________________________________
4. SUBWOOFER – HQsing SW12
Technical Specifications
Type: Active subwoofer
Driver: 12 inch (305mm) aluminum cone
Power:
300W RMS
600W Peak
Frequency Response: 24Hz – 125Hz
Amplifier: Class-D
Dimensions: 376 × 448 × 478 mm
Weight: 21.6 kg
Controls
Volume
Phase
Crossover (frequency adjustment)
