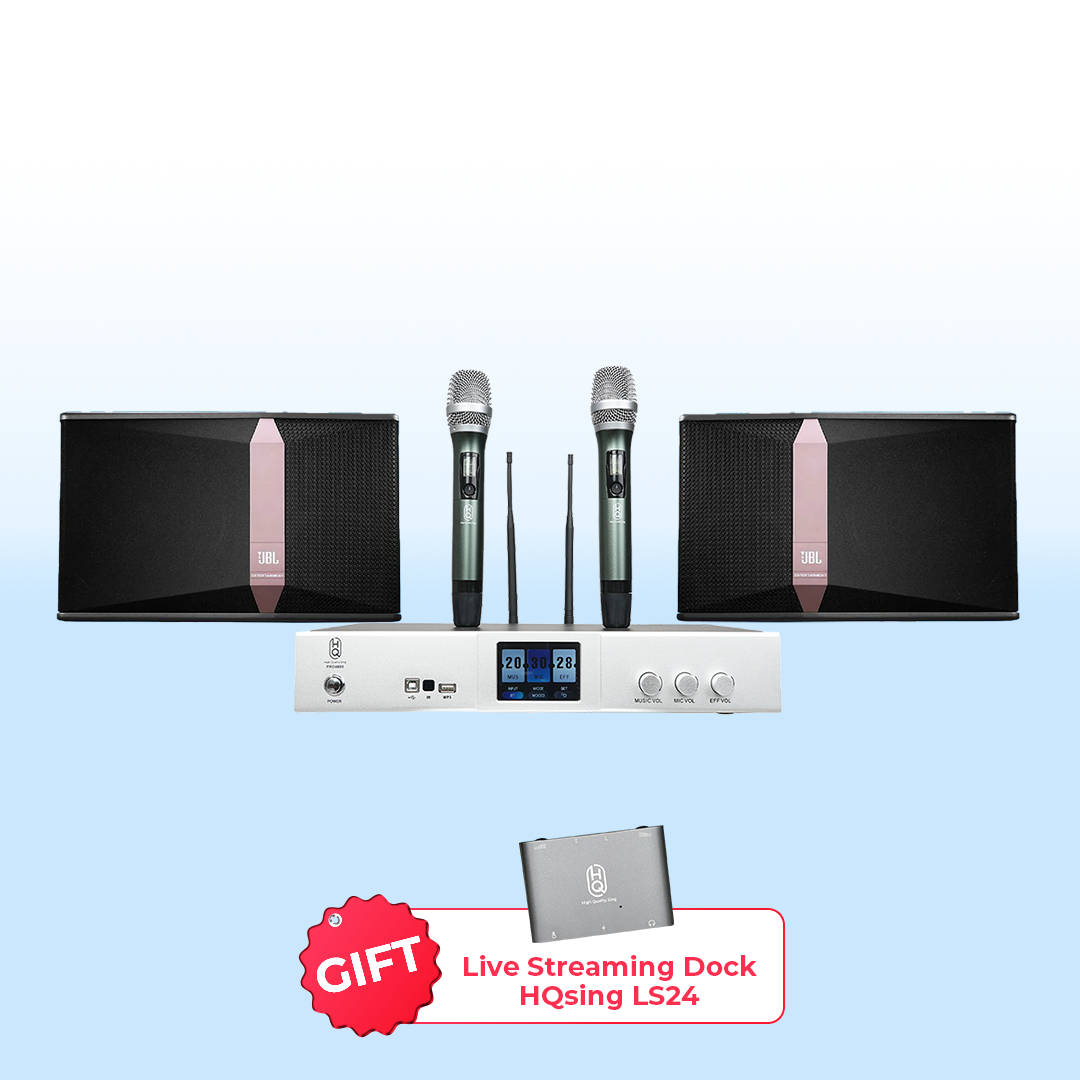

JBL KI510 Home plus 4000

SET KARAOKE: JBL x 2 Speakers Home Plus 4000

1. SYSTEM CONFIGURATION

• Main Speakers: 2 x JBL KI510 (Passive 10” Speakers)
• Amplifier: HQsing PRO4000 (3 in 1: DSP + 2 Microphones + Power Amp)

2. MAIN SPEAKERS – JBL KI510

Technical Specifications

• Type: 3-way full-range passive speaker
• Driver configuration: 1 x 10" woofer + 1 x 5" squawker + 1 x 1" aluminum dome tweeter
• Power Handling: 350W Continuous / 700W Program / 1400W Peak
• Impedance: 8Ω
• Sensitivity: 89 dB
• Max SPL: 113 dB / 119 dB Peak
• Frequency Range (-10dB): 62Hz – 18kHz
• Frequency Response (-3dB): 75Hz – 16kHz
• Coverage: 80° × 60°
• Dimensions: 310 × 510 × 342 mm
• Weight: 24.8 kg / speaker

Construction

• Designed specifically for KTV / karaoke applications
• 10-inch woofer for tight and controlled bass
• 5-inch squawker for clearer midrange vocal presence
• 1-inch aluminum dome tweeter for brighter and more detailed highs
• Well suited for vocal-forward karaoke sound character

Connectivity

• Passive speaker terminals
• Suitable for use with karaoke amplifiers or power amplifiers matched to 8Ω speakers

3. AMPLIFIER – HQsing PRO4000

Main Specifications

• Device type: Amplifier 3 in 1
• Power Output: 400W RMS / channel (800W total RMS)
• Frequency Response: 20Hz – 20kHz
• S/N Ratio: > 90 dB
• THD: < 0.05%

Integrated Features

• DSP + 2 UHF Wireless Microphones + Power Amp
• 3 quick control knobs: MIC / EFF / MUSIC
• Remote control included
• All-in-one design with fewer separate devices
• Suitable for family karaoke rooms around 20–30m² based on HQsinginternal material

Connectivity

• Input: Optical / Bluetooth / RCA
• Output: 2-channel Speaker Out

👉 Important:
This set is suitable for customers who want a compact and easy-to-use home karaoke system with clear vocals and a KTV-oriented sound character. The JBL KI510 is rated at 350W continuous into 8 ohms, while the PRO4000 provides 400W
RMS per channel, making this a practical and well-matched home-plus configuration when properly set up.

4. MICROPHONES – BUILT-IN WIRELESS
MICROPHONES OF PRO4000

Technical Specifications

• Wireless type: 2 built-in UHF wireless microphones
• Operating range: Approx. 50 m
• Integrated directly into the PRO4000 amplifier

Design

• Included as part of the 3 in 1 system
• Reduces cable clutter and keeps the setup compact

Suitable for family karaoke, living rooms, and small to medium spaces
