Bose L1 Pro8 Premium 709.1

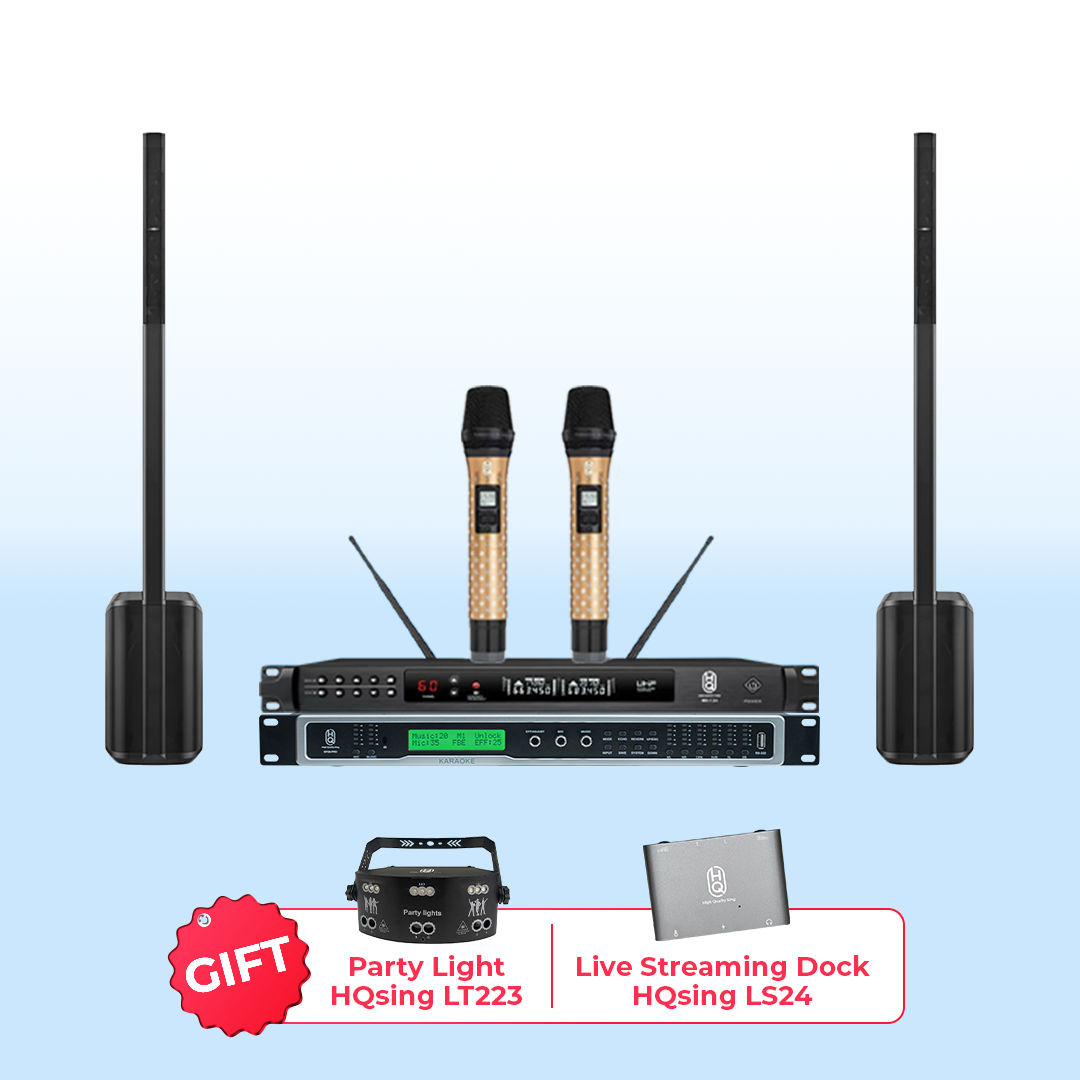

1. SYSTEM CONFIGURATION
• Main Speakers: 2 x Bose L1 Pro 8
• Processor: 1 x HQsing DP26 Pro (Flagship Dual-Core DSP)
• Microphones: 1 x HQsing MR124 Wireless Microphone System (High-End)
Included Gifts
• Dock Livestream LS24
• Party Light LT223
2. MAIN SPEAKERS — Bose L1 Pro 8 Main Specifications
• Speaker Type: Portable active line array speaker system
• Drivers: 8 neodymium 2-inch drivers (C-shape array) + 1 RaceTrack subwoofer
• Power Output: 300W per speaker (60W HF + 240W LF)
• Max SPL: 118 dB (Peak)
• Frequency Response: 33 Hz – 18 kHz (-10 dB)
Integrated Features
• Wide Coverage: 180° horizontal coverage eliminates "dead zones" in the room.
• RaceTrack Woofer: 7" x 13" high-excursion driver offers the power of a 12-inch woofer in a slim, portable frame.
• App Control: Wireless tuning of EQ and reverb via the Bose L1 Mix app.
3. PROCESSOR — HQsing DP26 Pro Technical Specifications
• DSP Chip: ADI 64-bit Dual-core processing (High-speed multi-threading)
• Connectivity: Bluetooth 5.0 Lossless, Optical, Coaxial, RCA
• Anti-Howling: 7-level Frequency Shift (Low / Mid / High)
• Outputs: 6 independent channels (Main L/R, Center, Surround L/R, Sub)
• Presets: 9 user-programmable memory groups
Integrated Features
• Flagship Audio Control: Independent multi-band PEQ for Music, Mic, Echo, and Reverb.
• Lossless Streaming: High-fidelity wireless audio transmission without signal compression.
• System Protection: Built-in limiter and temperature monitoring to ensure long-term speaker safety.
4. MICROPHONES — HQsing MR124 Technical Specifications
• Wireless Type: UHF (640-690 MHz)
• Channels: 200 auto-sync channels (100 per mic)
• S/N Ratio: > 110 dB (Ultra-low noise floor)
• Sensitivity: 12 dBμV (80dB S/N)
• Operating Range: Up to 50 meters (164 feet)
Integrated Features
• Professional Grade: Full metal construction for impact resistance and premium feel.
• Smart Energy: Auto-off function saves battery and prevents feedback when not in play.
• Vocal Clarity: Cardioid polar pattern and cardioid dynamic head isolate the voice from background noise.
5. INCLUDED GIFTS
• Dock Livestream LS24: Professional audio interface designed to capture studio-quality karaoke audio directly to your smartphone for recording or streaming.
• Party Light LT223: High-performance decorative lighting to enhance the visual stage atmosphere of your home entertainment space.
6. APPLICATION
• Luxury Living: Perfect for high-end home karaoke in spacious rooms and open-concept villas.
• Stage-Level Performance: Ideal for users who want the "cleanest" vocals and professional acoustic control.
• Modern Design: Sleek, vertical design that complements contemporary interior décor while minimizing cable clutter.
